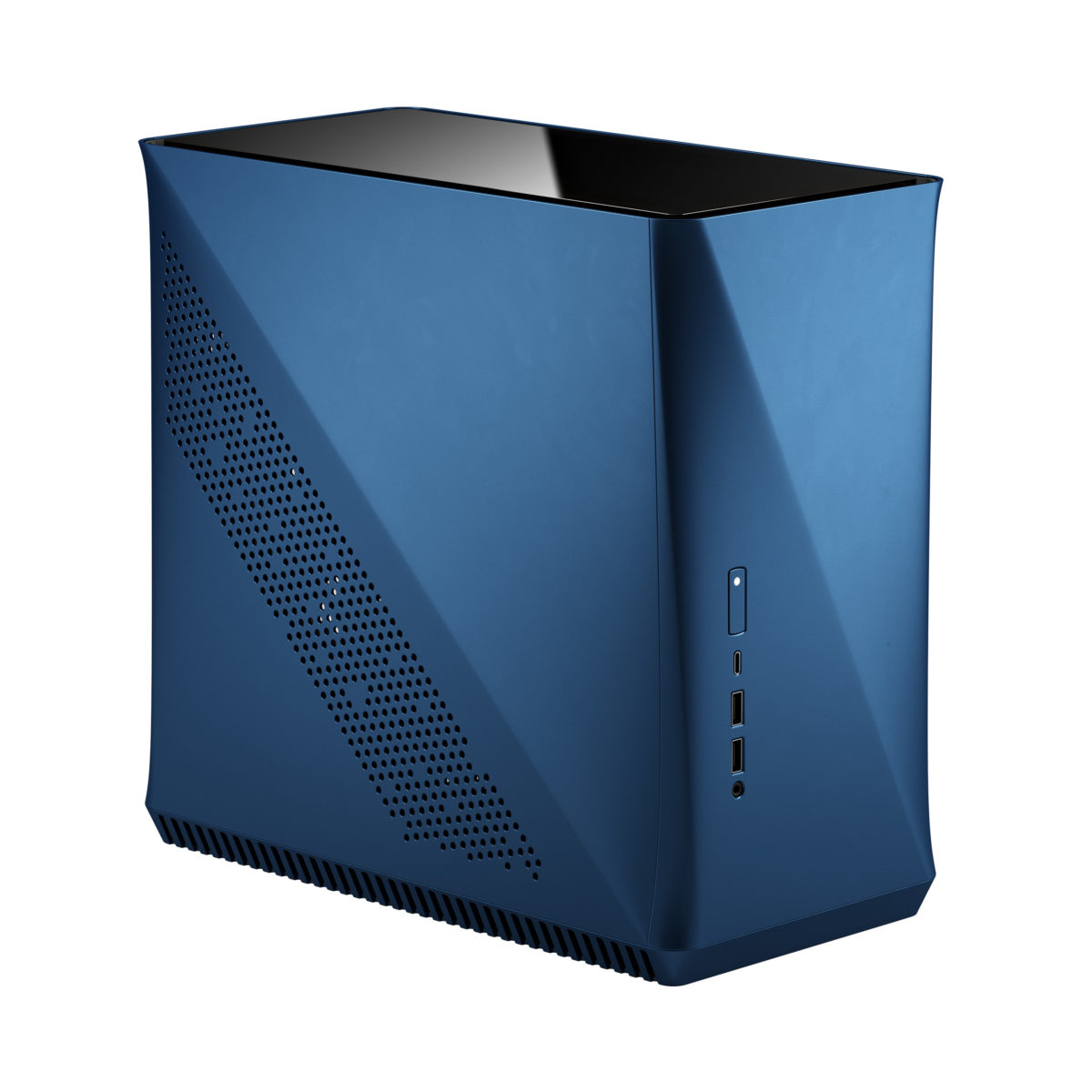

Fractal Design Era ITX - Cobalt Tempered Glass
Fractal Design Era ITX - Cobalt Tempered Glass
無法載入取貨服務供應情況
Specifications
3.5” drive support
SFX PSU: 2 HDDs or 1 HDD + 2 SSDs; ATX PSU: 1 HDD
2.5” drive support
SFX PSU: 4 SSDs or 2 SSDs + 1 HDD; ATX PSU: 2 SSDs
Expansion slots
2
Front ports
1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 3.5 mm CTIA combined audio/mic
Total fan mounts
5
Top fan
2x 120 mm
Rear fan
1x 80 mm (1 x SSR3 80 mm included)
Bottom fan
2x 140 mm (without 2-slot GPU)
Dust filters
Bottom intake, Side intakes, Top exhaust
Fixed velcro straps
Yes
Tool-less push-to-lock
Both side panels
Left side panel
Aluminum
Right side panel
Aluminum
Compatibility
Motherboard compatibility
ITX
Power supply type
ATX, SFX-L, SFX
Top radiator
120/240 mm or 2x 120 mm (max 125 mm width, 67 mm thickness w/ fans, dependent on PSU position/type)
PSU max length
200 mm
GPU max length
295 mm or 210/190 mm (with low-mounted SFX/ATX PSU)
CPU cooler max height
120 mm (70 mm recommended with side-mounted 3.5” HDD)
Dimensions
Case dimensions (L x W x H)
325 x 166 x 310 mm
Case dimensions w/o feet/protrusions/screws
325 x 166 x 307 mm
Net weight
3.97 kg
Package dimensions (L x W x H)
385 x 240 x 420 mm
Gross weight
4.93 kg

-
